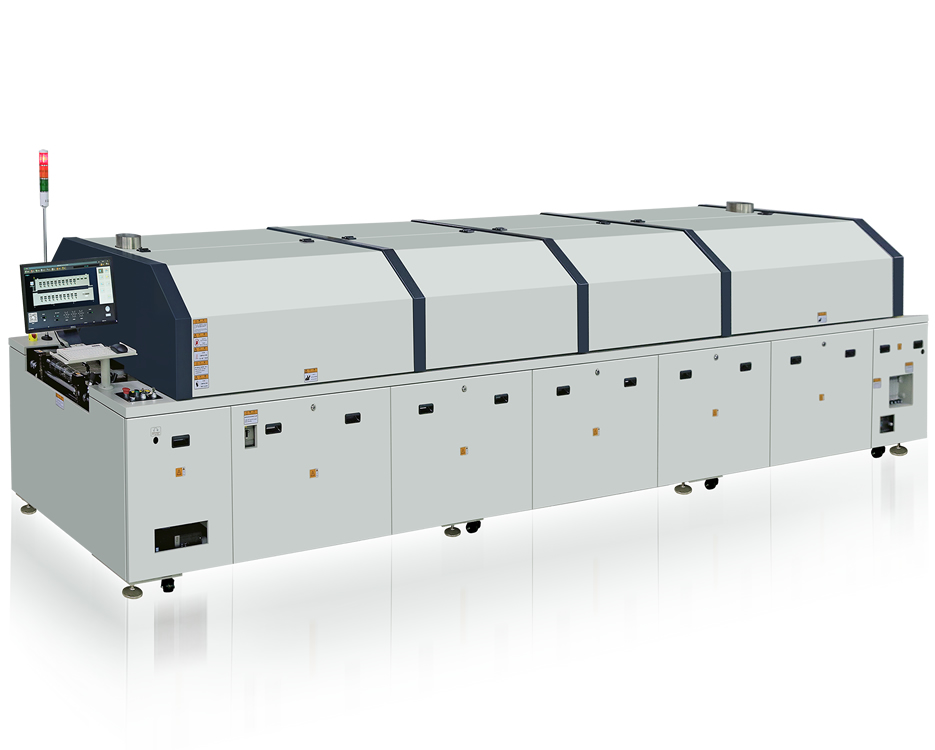

Lead Free Reflow Oven Industrial PC control system Automatic lubricating design by pressure pump Flux Recovery System Independent cooling system.
Lead Free Reflow Oven HF Series Features:
● Minimal down
● Integrated residue management
● User-friendly software tools for process monitoring
● Modular system concept
● Efficient heat transfer
● Stable process for lead-free applications
● Energy efficient system with lowest CO2 emission
● Hightest process stability even with lead-free soldering
● Excellent Traceablity due to smart software tools
● Lowest Total Cost of Ownership
Lead Free Reflow Oven HF Series Specification:
| Model | HF-8A | HF-10A | HF-12A |
|---|---|---|---|
| General Data | |||
| Dimension | L5900*W1300*H1500 | L6700*W1300*H1500 | L7530*W1300*H1500 |
| Net weight | Around 2200Kg | Around 2300Kg | Around 2400Kg |
| Power Supply | 3PH 380V 50HZ | ||
| Starting Power | 36KW | 36KW | 40KW |
| Startup Time | Approx.20-25 Min | ||
| Power consumption | Approx.8-10KW | Approx.9-11KW | Approx.10-12KW |
| Exhaust Value | 10-12m3/min | ||
| Preheating Zone Flux Recovery | Yes | ||
| Cooling Zone Flux Recovery | Yes | ||
| Preheat Heating | |||
| Heating Zones | Upper 8/ Bottom 8 | Upper 10/ Bottom 10 | Upper 12/ Bottom 12 |
| Tunnel Length | 3400mm | 4240mm | 5080mm |
| Setting Temp Range | Room Temp-300 ℃ | Room Temp-300 ℃ | Room Temp-300 ℃ |
| Max. Temp Setting Between Preheat & Welding Zone | 80° | ||
| Max. Temp Setting Between Each Preheat Zone | 40° | ||
| Max. Temp Setting Between Each Welding Zone | 40° | ||
| Temp Control Accuracy | +/-1 | ||
| Overtemperature Protection | Yes | ||
| Adjustment Range of Air Blower Motor | 1680-2800RMP | ||
| Cooling System | |||
| Number of Cooling Zone | 3 | ||
| Length of Cooling Zone | 1014mm | ||
| Cooling Mode | Air Cooling | ||
| Chiller | No | ||
| Conveyor | |||
| Upper Clearance | 30mm | ||
| Bottom Clearance | 25mm | ||
| Transport Width | 50-400mm | ||
| Transport Speed | 200-2000 mm/min | ||
| Transport Height | 900+/-20mm | ||
| Conveyor Type | Mesh Belt + Pin Chian | ||
| Transport Direction | L-R/R-L | ||
| Conveyor Width Adjustment | Manual/Electric | ||
| Central Support System | Option | ||
| Pin Chian Lubrication | Automatic | ||
| Control System | |||
| Automatic Power Off | Yes | ||
| Operation System | Win 7 | ||
| Controlling type | PC + SIEMENS PLC controlling | ||
| UPS | Yes | ||
Lead Free Reflow Oven HF Series included:
● Lead Free Reflow Oven
● Industrial PC control system
● Automatic lubricating design by pressure pump
● Flux Recovery system
● Cooling system
● 1 year warranty
● Free Accessories
Water Chiller
Center Support System
Dual Conveyor System
