● The In-line Curing Machine (IR Series) is ideal for high-volume curing production. They are easy to integrate with different Conformal Coating machines.
● Available in different lengths, they provide the flexibility to match your production requirements and feature robust construction and a streamlined appearance.

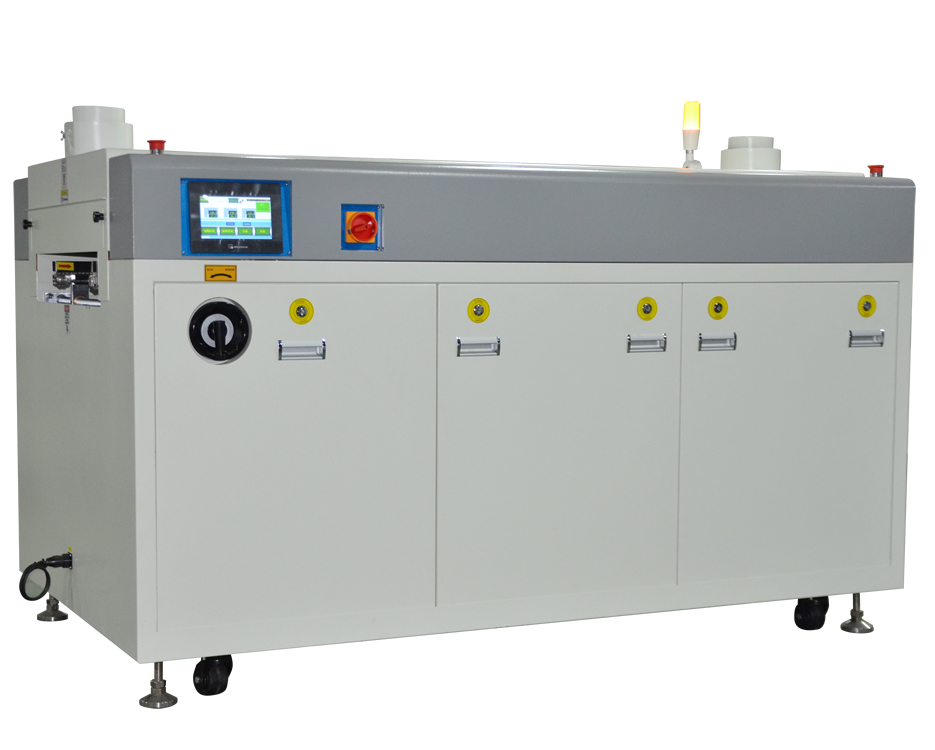

IR-2030P Series Curing Oven Features:
● Touchscreen & PLC for controlling system. Can save all the temperature, speed parameters.
● PID for temperature controlling.
● Brand electrical component like Schneider (German) breaker, Omron (Japan) box breaker. It runs stable and lower noise.
● At entrance and exit there are plate we can adjust the height, so to prevent heat lose from both end.
● Stainless steel chain conveyor with harden guiding rails, 5MM pin length for conveyor chain.
● The cure chamber achieves a thermally uniform atmosphere with Japan designed Far IR Panel.
● IR panel surface with special water-proof treatment, when coating material need higher humidity to curing, heater can stand it too.
IR-2030P Series Curing Oven Specification:
| Model | IR-2030P |
|---|---|
| Dimension and Weight | |
| Dimension L*W*H | L2000mm*W1135mm*H1145mm |
| Weight | Approx.500kg |
| Transport System | |
| Transport Height | 900±20mm |
| Transport Speed | 0.1-3.5m/min |
| Transport Direction | L-R |
| Transport Motor | AC220V 90W |
| Transport Mode | Pin Chin (35B 5mm Stainless Steel) |
| Width Adjustment | MAX 450mm |
| Heating System | |
| Heating Mode | IR Panel (optional with IR Tube) |
| Heating Zones | 3 Sets (Top3, Bottom 3 is an option) |
| Temperature Scope | Room temp to 150°C (IR Tube), Room temp to 250°C (IR Panel) |
| Temperature Rising Time | 8 mins(To 150°C) (for IR Tube), 15 mins(To 250°C) (for IR Panel) |
| PCB Size | MAX W450*L450 |
| PCB Clearance | Top Side 60MM Bottom Side 60MM |
| Control System | |
| Control Mode | Touchscreen |
| Power Supply | AC380V |
| Total Power | 13KW for only top, 25KW for top & bottom |
| Running Power | Top only (6-8kw for IR tube, 2--4KW for IR panel) / Top & bottom (8--14kw for IR tube, 4--8KW for IR panel) |
| Cover Lifting Mode | Electric Screws |
| IR-2030P Series Curing Oven (P means IR panel, without P means IR tube) Dimension | |
| IR-2030P(Upper 3) | L2000mm*W1135mm*H1145mm |
| IR-2033P (Upper 3/Bottom 3) | L2000mm*W1135mm*H1145mm |
| IR-2660P(Upper 4) | L2600mm*W1135mm*H1145mm |
| IR-2644P(Upper 4/Bottom 4) | L2600mm*W1135mm*H1145mm |
| IR-3350P(Upper 5) | L3300mm*W1135mm*H1145mm |
| IR-3355P(Upper 5/Bottom 5) | L3300mm*W1135mm*H1145mm |
| IR-4060P(Upper 6) | L4000mm*W1135mm*H1145mm |
| IR-4066P(Upper 6/Bottom 6) | L4000mm*W1135mm*H1145mm |
| IR-2030P Series Curing Oven (P means IR panel, without P means IR tube) Dimension | |
| IR-2030P(Upper 3) | IR Tube/9.5KW IR Panel/10KW |
| IR-2033P (Upper 3/Bottom 3) | IR Tube/18.5KW IR Panel/19KW |
| IR-2660P(Upper 4) | IR Tube/13KW IR Panel/13.5KW |
| IR-2644P(Upper 4/Bottom 4) | IR Tube/25KW IR Panel/26KW |
| IR-3350P(Upper 5) | IR Tube/16KW IR Panel/17KW |
| IR-3355P(Upper 5/Bottom 5) | IR Tube/31KW IR Panel/33KW |
| IR-4060P(Upper 6) | IR Tube/19KW IR Panel/20KW |
| IR-4066P(Upper 6/Bottom 6) | IR Tube/37KW IR Panel/38KW |
