Reflow Oven Machine

1CLICKSMT Provides Different Type Reflow Oven Machine and Customized Solution
Home / Products

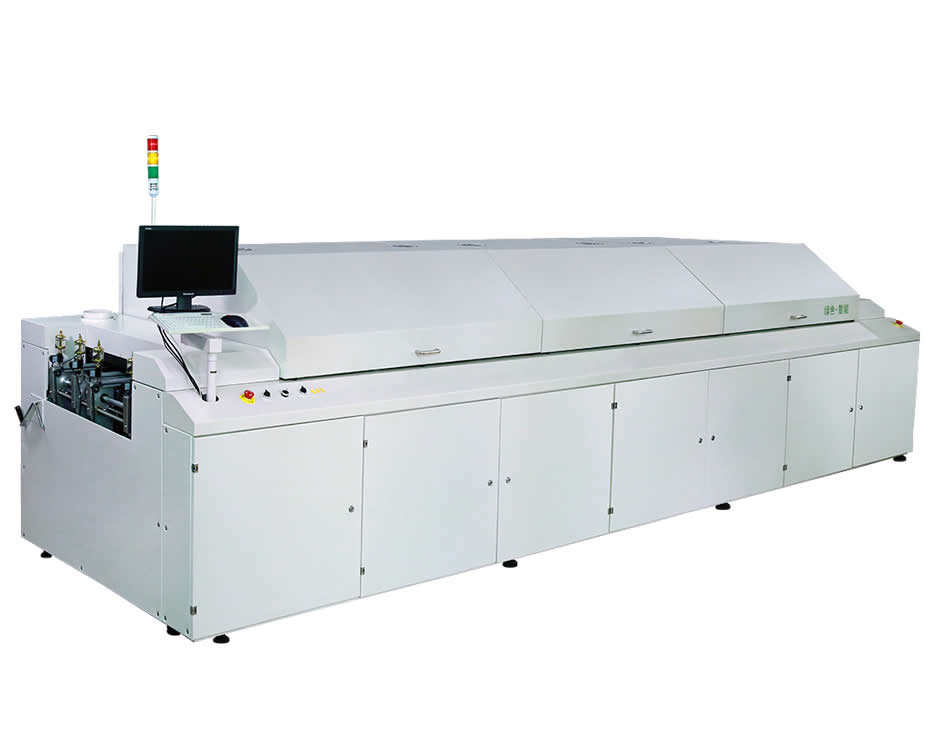

Lead Free Reflow Oven SF Series

● Lead Free Reflow Oven

● Industrial PC control system

● Automatic lubricating design by pressure pump

● Flux Recovery system

● Cooling system

● 1 year warranty

● Free Accessories

Lead Free Reflow Oven SF Series Features

● Lead Free Reflow Oven

● Industrial PC control system

● Automatic lubricating design by pressure pump

● Flux Recovery system

● Cooling system

● 1 year warranty

● Free Accessories

Lead Free Reflow Oven SF Series Specification:

Model SF-8E SF-10E SF-12E
Dimension L5040*W1430*H1450 L5750*W1430*H1450 L6460*W1430*H1450
Net weight about 2500Kg about 3000Kg about 3500Kg
General power 59KW 73KW 89KW
Power consumption Approx.7.5KW Approx.9.5KW Approx.11KW
Power Supply 3PH 380V 50HZ
Controlling type SIEMENTS PC + PLC controlling
Transport Width 50-440
Component Height +30mm/ -20mm
Tunnel Length  2900mm 3600mm 4300mm
Heating Zone 8 temp zones
16 heating modules
10 temp zones
20 heating modules
12 temp zones
24 heating modules
Flux Recovery Standard
Cooling Type Upper 1+ Bottom 1 cooling zone (air cool) Length: 450mm
Option: cooling water
Upper 2+ Bottom 2 cooling zone (air cool) Length:900mm
Option: cooling water
Model SF-8N SF-10N SF-12N
Dimension L5040*W1430*H1450 L5750*W1430*H1450 L6460*W1430*H1450
Net weight about 2500Kg about 3000Kg about 3500Kg
General power 59KW 73KW 89KW
Power consumption Approx.7.5KW  Approx.9.5KW Approx.11KW
Power Supply 3PH 380V 50HZ
Controlling type SIEMENTS PC + PLC controlling
Transport Width 50-440
Component Height +30mm/ -20mm
Tunnel Length  2900mm 3600mm 4300mm
Heating Zone 8 temp zones
16 heating modules
10 temp zones
20 heating modules
12 temp zones
24 heating modules
Flux Recovery Standard
Cooling Type Upper 2+ Bottom 2 cooling zone (cooling water) (Standard) Length: 900mm

Lead Free Reflow Oven SF Series included:

● Lead Free Reflow Oven

● Industrial PC control system

● Automatic lubricating design by pressure pump

● Flux Recovery system

● Cooling system

● 1 year warranty

● Free Accessories
